Brand Name :
TONGDA
Model Number :
TONGDA HTSll2L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$29,999.00 - $44,999.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year :
2020
Voltage :
Customized to customer needs
Dimension(L*W*H) :
2.78m*1.55m*2.35m
Hollow part volume :
1-2L
Clamping Force (kN) :
44
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
50 mm
Output (kg/h) :
50 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
3
Screw Heating Power(kW) :
6.8 kW
Extruder Motor Power(kW) :
11 kW
Mold Platen Size(Width)(mm) :
360 mm
Mold Platen Size(Height)(mm) :
320 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.4 m³/min
Die Head Heating Power(kW) :
7 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
30.5
Weight (T) :
4
Key Selling Points :
Long Service Life
Warranty :
1 Year
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
single
Suitable bottle :
1-2L
Key words :

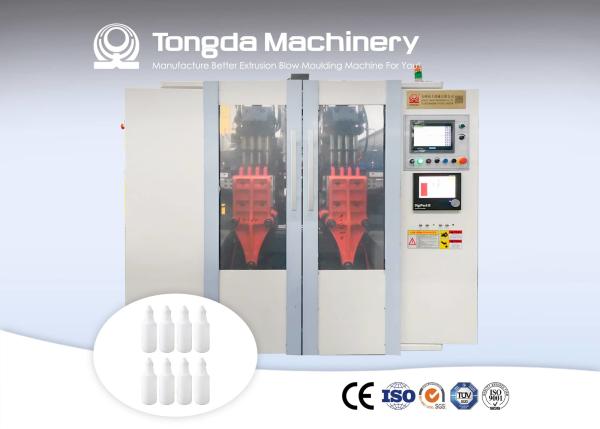

Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
360*320
Hydraulic valve :
Yuken
Color :
White
Port :
shanghai
